Mercedes-Benz GL-Class: Setting the temperature - Operating the climate control system - Climate control - Mercedes-Benz GL-Class Owner's ManualMercedes-Benz GL-Class: Setting the temperature

2-zone automatic climate control

Different temperatures can be set for the driver's and front-passenger sides.

► Turn the SmartKey to position 2 in the ignition lock.
► To increase/reduce: turn controls 1 and 7 clockwise or counter-clockwise.

Only change the temperature setting in small increments. Start at 72 °F (22 °C).

3-zone automatic climate control

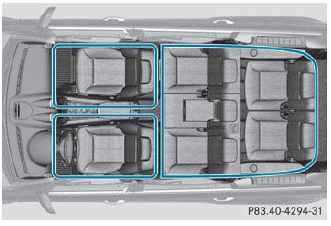

Automatic climate control climate zones

Automatic climate control climate zones

You can select different temperature settings for the driver's and front-passenger sides as well as for the rear compartment.

► To increase/reduce the frontcompartment temperature using the front control unit: turn the SmartKey in the ignition lock to position 2.
► Turn controls 1 and 7/9 clockwise or counter-clockwise.

Only change the temperature setting in small increments. Start at 72 °F (22 °C).

USA only:

► To increase/reduce the rearcompartment temperature using the front control unit: turn the SmartKey in the ignition lock to position 2.
► Press the ► Turn control 7 clockwise or button.
► Turn control 7 clockwise or counterclockwise.

Only change the temperature setting in small increments. Start at 72 °F (22 °C).

Canada only:

► To increase/reduce the rearcompartment temperature using the front control unit: turn the SmartKey in the ignition lock to position 2.

► Press the button.

The display changes to rear-compartment climate control.

► Turn control 9 clockwise or counterclockwise.

Only change the temperature setting in small increments. Start at 72 °F (22 °C).

the button. To return to the standard display, press the button.

display automatically after three seconds. The rear display changes to the standard display automatically after three seconds.

► To increase/reduce the temperature in the rear compartment using the rear control panel: turn the SmartKey in the ignition lock to position 2.

► Turn control 18/22 clockwise or counter-clockwise.

Only change the temperature setting in small increments. Start at 72 °F (22 °C).

    Setting climate control to automatic
    WARNING   If you switch off the cooling function, the vehicle will not be cooled when weather conditions are warm. The windows can fog up more quickly. Window fogging may impair visibil ...

    Setting the air distribution
    Air distribution settings Automatic climate control: the air distribution can be set individually for the driver's and front-passenger sides. Front control unit: Directs the airflow through the ...
