Mercedes-Benz GL-Class: Preparing the cargo net
The cargo net can be used in two different positions (behind the B-pillar or the C-pillar).

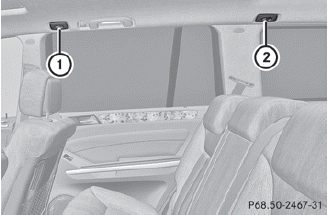

• The brackets behind B-pillar : are required for the cargo compartment enlargement.
The corresponding cargo tie down rings to tighten the net are located in the footwell of the rear bench seat.
• The brackets behind C-pillar ; are required for the cargo compartment behind the 2nd row of seats.
The corresponding cargo tie down rings for tensioning the net are in the cargo compartment or on the backrests of the folded-down 3rd row of seats.
► Undo the two Velcro fasteners of the
safety-net stowage.
► Unroll and unfold the cargo net.
The upper and lower guide rods must engage audibly.
