Infiniti QX: How to use INFO button - Vehicle information and settings - Monitor, climate, audio, phone and voice recognition systems - Infiniti QX Owner's ManualInfiniti QX: How to use INFO button

The display screen shows vehicle and navigation information for your convenience. The information shown on the screen should be a guide to determine the condition of the vehicle. See the following for details.

Vehicle information display

Vehicle information display

1. Push the INFO button on the control panel. 2. Select an item from the INFO menu. 3. After viewing or adjusting the information on the following screens, push the BACK button to return to the INFO menu. See the separate Navigation System Owner’s Manual for the following items:
► Where am I?
► Traffic Info
► Weather Info
► Map Update
► Navigation Version  When the ignition switch is in the ON position, the “Navigation Version” key is displayed after selecting the “Others” key.

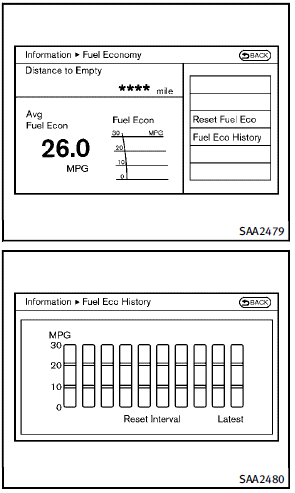

Fuel Economy information

Fuel Economy information

The approximate distance to empty, average fuel economy and current fuel economy will be displayed for reference. To reset the average fuel economy (Avg Fuel Econ), select the “Reset Fuel Eco” key. If the “Fuel Eco History” key is selected, the average fuel consumption history will be displayed in graph form along with the average for the previous Reset-to-Reset period. The unit can be converted between “US” and “Metric”. (See “How to use SETTING button” later in this section.). The fuel economy information may differ from the information displayed on the vehicle information display. This is due to the timing difference in updating the information and does not indicate a malfunction.

TIRE PRESSURE information

WARNING

► When a spare tire is mounted or a wheel WARNING

► When a spare tire is mounted or a wheel is replaced, tire pressure will not be indicated, the TPMS will not function and the low tire pressure warning light will flash for approximately 1 minute. The light will remain on after 1 minute. Contact your INFINITI retailer as soon as possible for tire replacement and/or system resetting.
► Replacing tires with those not originally specified by INFINITI could affect the proper operation of the TPMS.

The tire pressure will be displayed for reference. The pressure indication “ kPa” or “ psi” on the screen means that the pressure is being measured. After a few driving trips, the pressure for each tire will be displayed. To change the measurement units, select the “Select Units” key with the INFINITI controller and push the ENTER button. In case of low tire pressure, LOW PRESSURE information will be displayed on the screen. Check the pressure of all tires. Tire pressure rises and falls depending on the heat caused by the vehicle’s traveling condition and the temperature. After tire rotation is performed, tire pressure will not be displayed in the actual tire position. Drive the vehicle at over 25 MPH (40 km/h) for approximately 10 minutes to reset the display. For more details about the Tire Pressure Monitoring System (TPMS), see “Tire Pressure Monitoring System (TPMS)” in the “5. Starting and driving” section.  When the ignition switch is in the ACC position, the “Tire Pressure” key is not displayed.

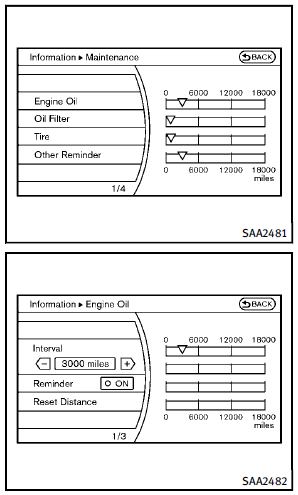

Maintenance information

The maintenance intervals can be displayed

The maintenance intervals can be displayed for the engine oil, oil filter, tire and other reminders. To set a maintenance interval, select a preferred item from the list. You can also set to display a message to remind you that the maintenance needs to be performed. The following example shows how to set the engine oil maintenance information. Use the same steps to set the other maintenance information. 1. Set the interval (mileage) of the maintenance schedule. To determine the recommended maintenance interval, refer to your “INFINITI Service and Maintenance Guide”. 2. To display the reminder automatically when the desired distance is reached, select the “Reminder” key. 3. Reset the driving distance to the new maintenance schedule. 4. To return to the previous screen, push the BACK button. The unit can be converted between “US” and “Metric”. (See “How to use SETTING Monitor, climate, audio, phone and voice recognition systems 4-11 4-12 Monitor, climate, audio, phone and voice recognition systems button” later in this section.)

The Reminder will be automatically displayed

The Reminder will be automatically displayed when the specified distance has been driven and every time the ignition switch is pushed to the ACC or ON position. The reminder will not appear while driving. Select the “OK” key to hide the reminder for the rest of the current drive. To stop the reminder from appearing, perform one of the following actions:

► Select the “Reset Distance”.
► Deactivate the “Reminder”.
► Increase the “Interval” distance to be more than the current distance being tracked.

Others information

The Others information display will appear

The Others information display will appear when pushing the INFO button and selecting the “Others” key. Navigation Version: For the details of this item, see the separate Navigation System Owner’s Manual. When the ignition switch is in the ignition position, the “Navigation Version” key is displayed after pushing the INFO button.

GPS Position:

For the details of this item, see the separate Navigation System Owner’s Manual.

Voice Recognition:

For the details of this item, see “INFINITI Voice Recognition system” later in this section.

    How to use brightness control and display ON/OFF button
    HOW TO USE BRIGHTNESS CONTROL AND DISPLAY ON/OFF BUTTON Push the button to switch the display brightness to the daytime mode or the nighttime mode, and to adjust the display brightness usin ...

    How to use SETTING button
    The display as illustrated will appear when the SETTING button is pushed. For navigation settings, refer to the separate Navigation System Owner’s Manual. Audio settings The display as i ...
