Cadillac Escalade: Checking Brake Fluid - Brake Fluid - Vehicle Checks - Vehicle Care - Cadillac Escalade Owner's ManualCadillac Escalade: Checking Brake Fluid

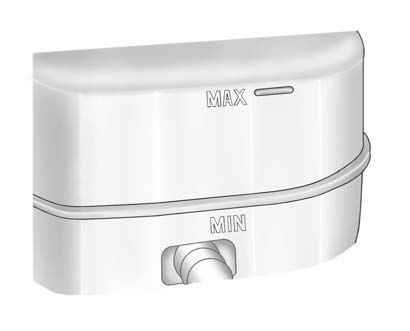

Check brake fluid by looking at the brake fluid reservoir. See Engine Compartment Overview  .

The fluid level should be above MIN. If it is not, have the brake hydraulic system

The fluid level should be above MIN. If it is not, have the brake hydraulic system checked to see if there is a leak.

After work is done on the brake hydraulic system, make sure the level is above the MIN but not over the MAX mark.

What to Add

Use only new DOT 3 brake fluid from a sealed container. See Recommended Fluids and Lubricants  .

Always clean the brake fluid reservoir cap and the area around the cap before removing it. This helps keep dirt from entering the reservoir.

WARNING WARNING

With the wrong kind of fluid in the brake hydraulic system, the brakes might not work well. This could cause a crash. Always use the proper brake fluid.

Notice

  • Using the wrong fluid can badly damage brake hydraulic system parts. For example, just a few drops of mineral-based oil, such as engine oil, in the brake hydraulic system can damage brake hydraulic system parts so badly that they will have to be replaced. Do not let someone put in the wrong kind of fluid.
  • If brake fluid is spilled on the vehicle's painted surfaces, the paint finish can be damaged. Be careful not to spill brake fluid on the vehicle. If you do, wash it off immediately.
    Brake Fluid
    The brake master cylinder reservoir is filled with DOT 3 brake fluid. See Engine Compartment Overview   for the location of the reservoir. There are only two reasons why the brake fluid ...
