Cadillac Escalade: When to Add Engine Oil - Engine Oil - Vehicle Checks - Vehicle Care - Cadillac Escalade Owner's ManualCadillac Escalade: When to Add Engine Oil

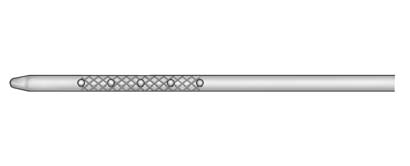

If the oil is below the cross-hatched area at the tip of the dipstick, add 1

If the oil is below the cross-hatched area at the tip of the dipstick, add 1 L (1 qt) of the recommended oil and then recheck the level. See “Selecting the Right Engine Oil” in this section for an explanation of what kind of oil to use. For engine oil crankcase capacity, see Capacities and Specifications  .

Notice: Do not add too much oil. Oil levels above or below the acceptable operating range shown on the dipstick are harmful to the engine. If you find that you have an oil level above the operating range, i.e., the engine has so much oil that the oil level gets above the cross-hatched area that shows the proper operating range, the engine could be damaged. You should drain out the excess oil or limit driving of the vehicle and seek a service professional to remove the excess amount of oil.

See Engine Compartment Overview   for the location of the engine oil fill cap.

Add enough oil to put the level somewhere in the proper operating range. Push the dipstick all the way back in when through.

    Checking Engine Oil
    It is a good idea to check the engine oil level at each fuel fill. In order to get an accurate reading, the vehicle must be on level ground. The engine oil dipstick handle is a yellow loop. See Engi ...

    Selecting the Right Engine Oil
    Selecting the right engine oil depends on both the proper oil specification and viscosity grade. See Recommended Fluids and Lubricants  . Specification Use and ask for licensed engine oils wit ...
