Mercedes-Benz GL-Class: Switching the rear window wiper on/off - Replacing bulbs - Lights and windshield wipers - Mercedes-Benz GL-Class Owner's ManualMercedes-Benz GL-Class: Switching the rear window wiper on/off

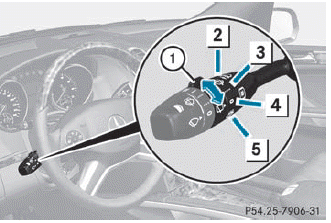

Combination switch

Combination switch

1 2  To wipe with washer fluid Switch
2 3  To switch on intermittent wiping To wipe with washer fluid
3 4 0 To switch off intermittent wiping To switch on intermittent wiping
4 0 To switch off intermittent wiping
5 ► Turn the SmartKey to position 1 or 2 in To wipe with washer fluid

Turn the SmartKey to position 1 or 2 in the ignition lock.
Turn switch 1 on the combination switch to the corresponding position.

When the rear window wiper is switched on, the icon appears in the instrument cluster.

    Switching the windshield wipers on/off
    WARNING   Wiper blades are components that are subject to wear and tear. Replace the wiper blades twice a year, preferably in the spring and fall. Otherwise the windows will not be wiped ...
