Mercedes-Benz GL-Class: Side impact air bags
WARNING
The pressure sensors for side impact air bag
control are located in the doors. Do not modify any components of the doors or
door
trim panels including, for example, the
addition of door speakers.
Improper repair work on the doors or the
modification or addition of components to the
doors create a risk of rendering the side
impact air bags inoperative or causing
unintended air bag deployment. Work on the
doors must therefore only be performed by
qualified technicians. Contact an authorized
Mercedes-Benz Center.
WARNING
Only use seat covers which have been tested
and approved by Mercedes-Benz for your
vehicle model. Using other seat covers may
interfere with or prevent the deployment of
the side impact air bags. Contact an
authorized Mercedes-Benz Center for
availability.
When deployed, the side impact air bags offer additional protection for the thorax of the vehicle occupants on the side of the vehicle on which the impact occurs. However, they do not protect the:
• head
• neck
• arms

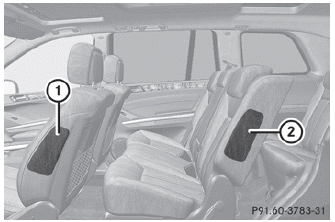

Front side impact air bags 1 and rear side impact air bags 2 deploy next to the outer seat cushions.
The side impact air bags are deployed:
• on the side on which an impact occurs
• at the start of an accident with a high
rate of lateral vehicle deceleration or acceleration, e.g. in a side impact
• independently of seat belt use
• independently of the front air bags
• independently of the ETDs/beat buckle
tensioners
If the vehicle overturns, the side impact air bags are generally not deployed. They are deployed if the system detects high vehicle deceleration or acceleration in a lateral direction and determines that side impact air bag deployment can offer additional protection to that provided by the seat belt.
Side impact air bags will not deploy in side impacts which do not exceed the system's preset deployment thresholds for lateral acceleration/deceleration. You will then be protected by the fastened seat belt.
Vehicles with OCS (USA only): if OCS detects that the front-passenger seat is not occupied and the front-passenger seat belt is not fastened (the belt tongue is not engaged in the seat belt buckle), the side impact air bag on the front-passenger side will not deploy.
The side impact air bag on the frontpassenger side will deploy if the frontpassenger seat belt is fastened, regardless of whether the front-passenger seat is occupied or not.
Vehicles with BabySmart™ (Canada only):
do not place any objects which weigh more than 20 lb (9 kg) on the front-passenger seat. This could cause the system to identify the seat as being occupied. In the event of an accident, the restraint systems on the front-passenger side are triggered.
Have restraint systems that have been triggered replaced.
Driver's knee bag
Driver's knee bag 1 provides additional
protection for the driver against:
• knee injuries
• thigh injuries
• lower leg injuries
Driver's knee bag 1 deploys below the
steering wheel. Dur ...
Window curtain air bags
The window curtain air bags enhance the level
of protection for the head, but not chest or
arms, of the vehicle occupants on the side of
the vehicle on which the impact occurs.
The window curtai ...
