Mercedes-Benz GL-Class: Replacing the rear window wiper blade - Replacing the wiper blades - Replacing bulbs - Lights and windshield wipers - Mercedes-Benz GL-Class Owner's ManualMercedes-Benz GL-Class: Replacing the rear window wiper blade

Removing the wiper blade

► Remove the SmartKey from the ignition

Remove the SmartKey from the ignition lock.

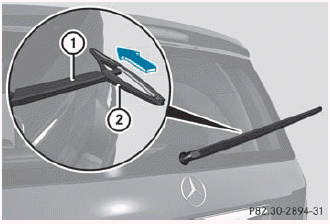

Fold wiper arm 1 away from the rear window until it engages.
Position wiper blade 2 at a right angle to wiper arm 1.
Hold wiper arm 1 and press wiper blade 2 in the direction of the arrow until it releases.
Remove wiper blade 2.

Installing the wiper blade

Place new wiper blade 2 onto wiper arm 1.
Hold wiper arm 1 and press wiper blade 2 in the opposite direction to the arrow until it engages.
Make sure that wiper blade 2 is seated correctly.
Position wiper blade 2 parallel to wiper arm 1.
Fold wiper arm 1 back onto the rear window.
