Infiniti QX: Intelligent Key battery replacement
CAUTION
Be careful not to allow children to swallow
the battery and removed parts.

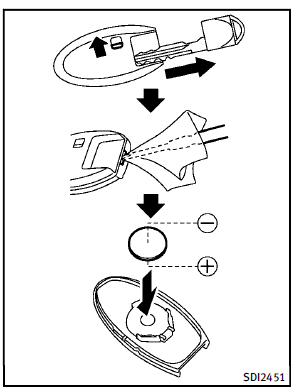

Replace the battery as follows:
1. Release the lock knob at the back of the
Intelligent Key and remove the mechanical
key.
2. Insert a small screwdriver into the slit
of the corner and twist it to separate
the upper part from the lower part. Use a cloth to protect the casing.
3. Replace the battery with a new one.
Recommended battery: CR2025 or
equivalent.
► Do not touch the internal circuit and
electric terminals as it could cause a
malfunction.
► Hold the battery by the edges.
Holding the battery across the contact
points will seriously deplete the
storage capacity.
► Make sure that the + side faces the
bottom of the case.
4. Align the tips of the upper and lower parts1 , and then push them together until it is securely closed 2 . 5. Push the buttons two or three times to check its operation. See an INFINITI retailer if you need any assistance for replacement.
FCC Notice:
For USA:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. For Canada: This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
