Cadillac Escalade: Engine Compartment Overview

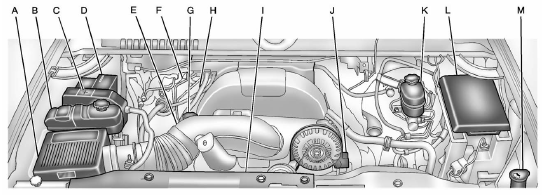

6.2L V8 Engine
A. Engine Air Cleaner/Filter .
B. Coolant Surge Tank and Pressure Cap. See Cooling System .
C. Remote Positive (+) Terminal. See Jump Starting .
D. Battery .
E. Remote Negative (−) Terminal (Out of View). See Jump Starting .
F. Automatic Transmission Dipstick (Out of View). See “Checking the Fluid Level”
under Automatic Transmission Fluid .
G. Engine Oil Fill Cap. See “When to Add Engine Oil” under Engine Oil .
H. Engine Oil Dipstick (Out of View). See “Checking Engine Oil” under Engine Oil
.
I. Engine Cooling Fans (Out of View). See Cooling System .
J. Power Steering Fluid Reservoir. See Power Steering Fluid .
K. Brake Master Cylinder Reservoir. See “Brake Fluid” under Brake Fluid .
L. Engine Compartment Fuse Block .
M. Windshield Washer Fluid Reservoir. See “Adding Washer Fluid” under Washer Fluid
.
If the vehicle is a hybrid, see the hybrid supplement for more information.
