Infiniti QX: Engine compartment - Illustrated table of contents - Infiniti QX Owner's ManualInfiniti QX: Engine compartment

VK56VD ENGINE

VK56VD ENGINE

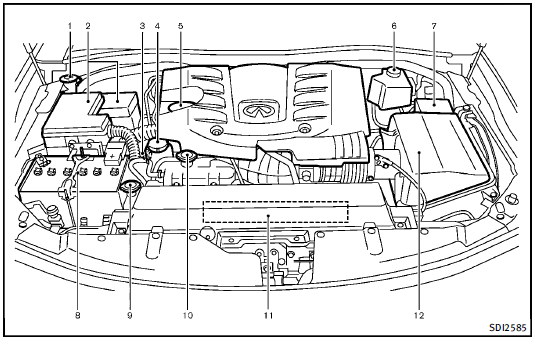

1. Window washer fluid reservoir (P.8-15)
2. Fuse/fusible link holder (P.8-22)
3. Engine oil dipstick (P.8-10)
4. Power steering fluid reservoir (P.8-13)
5. Engine oil filler cap (P.8-10)
6. Brake fluid reservoir (P.8-14)
7. Fuse/fusible link holder (P.8-22)
8. Battery (P.8-16)
9. Radiator filler cap (P.8-8)
10. Engine coolant reservoir (P.8-8)
11. Drive belts (P.8-18)
12. Air cleaner (P.8-19)

Illustrated

    Meters and gauges
    1. Tachometer (P.2-8) 2. Warning/Indicator lights (P.2-11) 3. Speedometer (P.2-7) 4. Engine coolant temperature gauge (P.2-8) 5. Voltmeter (P.2-10) 6. Dot matrix liquid crystal display/ ...
