Mercedes-Benz GL-Class: Adjusting luxury head restraints - Adjusting the head restraints - Seats - Seats, steering wheel and mirrors - Mercedes-Benz GL-Class Owner's ManualMercedes-Benz GL-Class: Adjusting luxury head restraints

WARNING When folding back the side cushions, never
When folding back the side cushions, never reach between the side cushion and the mounting post. You could otherwise be trapped.

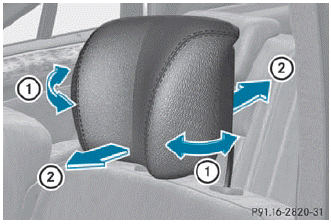

► To adjust the side bolsters of the head

► To adjust the side bolsters of the head restraint: push or pull right and/or lefthand side bolster 1 into the desired position.

► To adjust the angle of the head restraint: push or pull the head restraint in the direction of arrow 2.

    Adjusting the head restraint heightelectrically
    ► To adjust the head restraint height: slide the switch for head restraint adjustment up or down in the direction of the arrow. ...

    Rear seat head restraints
    WARNING   For safety reasons, always drive with the rear head restraints in the upright position when the rear seats are occupied. Keep the area around head restraints clear of articles ...
