Cadillac Escalade: Windshield Wiper/Washer

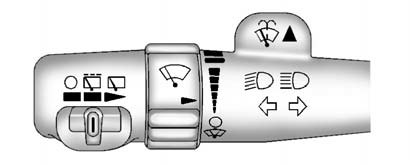

The front and rear wiper controls are located on the turn and lane-change lever.
Turn the band with the wiper symbol to control the windshield wipers.
: For a single wipe, turn to
, then release. For several wipes, hold
the band on
longer.
: Turns the windshield wipers off.
: Turn the band up for more frequent
wipes or down for less frequent wipes.
: Slow wipes.
: Fast wipes.
: Push the paddle at the top of the
lever to spray washer fluid on the windshield.
Rear Wiper Window Wiper/Washer
To turn the rear wiper on, slide the lever to a wiper position.
: Turns the wiper off.
: Turns on the rear wiper delay.
: Turns on the rear wiper.
: Press the button on the end of the
lever to spray washer fluid on the rear window.
See Windshield Wiper/Washer and Rear Window Wiper/Washer .
