Cadillac Escalade: Tumbling the Third Row Seat
To tumble the seat:
1. Open the liftgate to access the controls for the seat.
2. Make sure the headrests are completely lowered and there is nothing under, in front of, or on the seat.
3. Fold the seatbacks forward using lever “1” and the instructions listed previously under “Folding the Seatback.” The seat cannot be unlatched from the floor unless the seatback is folded.

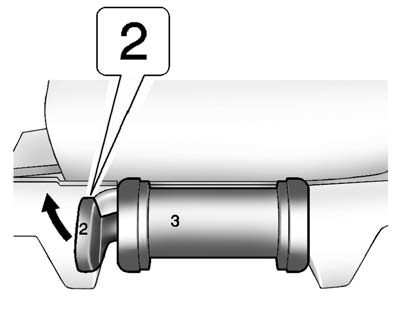

4. Unlatch the seat from the floor by lifting lever “2” next to the carrying handle on the rear of the seat, near the bottom.
5. Lift the rear of the seat up from the floor.
6. Tilt the seat fully forward to lock it into place.
7. Push and pull on the seat to make sure it is locked.
Put the seat in this position only when necessary for additional cargo space.
Returning the Seatback to the Upright Position
To return the seatback to the upright position:
1. Open the liftgate to access the controls for the seat.
2. Raise the seatback to the upright position.
WARNING
If either seatback is not locke ...
Returning the Third Row Seat from a Tumbled Position
To return the seat to the normal seating position:
1. Open the liftgate to access the controls for the seat.
2. Make sure there is nothing that could become trapped under the seat.
3. Release the s ...
