Range Rover: Trailer guidance - Camera systems - Range Rover Owner's ManualRange Rover: Trailer guidance

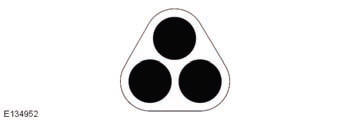

Note: Trailer guidance requires a connected trailer to be fitted with a tracking target sticker, which must be attached according to specific instructions. Ask your Land Rover Retailer/Authorized Repairer for details.

Note: This feature may not operate with all trailer designs.

Note: This feature may not operate with all trailer designs.

Trailer guidance aids trailer reversing, by displaying information on the touch screen.

Trailer guidance becomes active when a trailer is attached to the vehicle and the trailer electrical plug is attached to the vehicle socket. The screen will display a choice for connection. Select YES to move to the setup screen. Select NO to return to the previous screen.

Note: If the connection is not detected, setup can be manually prompted by touching the Tow Assist soft key on the Camera menu.

    Camera cleanliness
    If the color of the camera position arrow in the display changes from blue to red, the system has detected that the camera is dirty. Clean the camera in accordance with the guidelines given on pag ...

    Trailer setup
    On first use, the setup screens take the user through a series of configuration options for the connected trailer. Information such as trailer length, number of axles and camera preference is requ ...
