Mercedes-Benz GL-Class: Tightening the cargo net

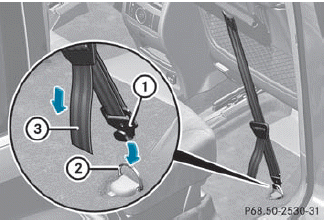

Seat belt reel holder behind the front seats
► Insert belt hook 1 into cargo tie-down
ring 2 in the direction of the arrow.
► Pull tensioning strap 3 by the loose end
in
the direction of the arrow until the cargo
net is tight.
► After driving a short distance, check the
tension of the cargo net and retighten it if
necessary.
