Mercedes-Benz GL-Class: Switching on/off
The three blue indicator lamps in the buttons indicate the ventilation level you have selected.
If the battery voltage is too low, the seat
ventilation may switch off.
► Make sure that the SmartKey is in
position
2 in the ignition lock.

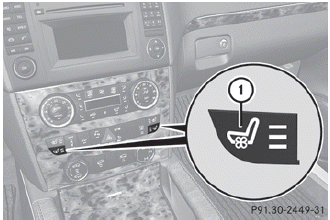

► To switch on: press button 1 repeatedly
until the desired ventilation level is set.
You can open the side windows and the
sliding sunroof using the "Convenience
opening" feature. The seat
ventilation of the driver's seat
automatically switches to the highest level.
► To switch off: press button 1 repeatedly until all the indicator lamps go out.
Problems with the seat ventilation
If one or all of the indicator lamps in the seat
ventilation button are flashing, the seat
ventilation has switched off automatically.
The vehicle's electrical system voltage is too
low because ...
