Cadillac Escalade: Recommended Fluids and Lubricants

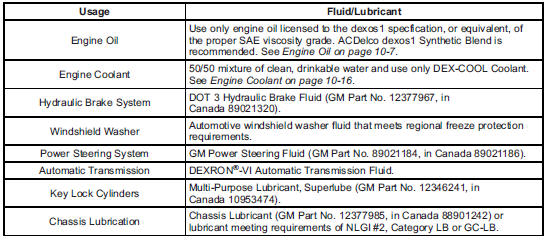

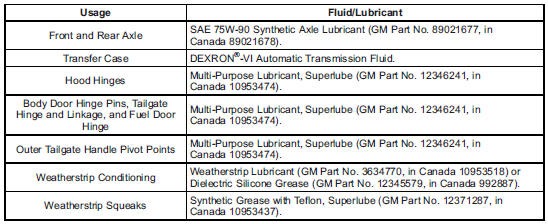

Fluids and lubricants identified below by name, part number, or specification can be obtained from your dealer.
Maintenance Replacement Parts
Replacement parts identified here by name, part number, or specification can
be obtained from your dealer.
...
