Range Rover: Rear view camera - Parking aids - Range Rover Owner's ManualRange Rover: Rear view camera

WARNING WARNING

It remains the driver's responsibility to detect obstacles and estimate the vehicle's distance from them when reversing.

When reverse gear is selected, the screen automatically displays a wide angle,

When reverse gear is selected, the screen automatically displays a wide angle, color image from the rear of your vehicle.

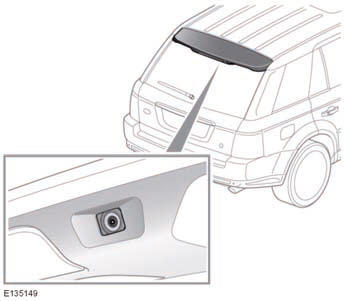

The rear view camera system provides a rear view image to assist in reversing the vehicle. Overlaid on the image are reversing guidelines.

NOTICE NOTICE

Some overhanging objects or barriers which could cause damage to the vehicle may not be detected by the camera.

Note: A return icon is displayed in the bottom right hand corner of the touch screen. Touch this to revert to the previously viewed screen.

Rear view camera display on the touch screen will discontinue when either of the following apply:

  • • Drive is selected for longer than 15 seconds.
  • • Drive is selected and/or vehicle speed is greater than 11 mph (18 km/h).
    Parking aid system fault
    If a system fault is detected, a long high-pitched tone will sound, and the switch indicator will flash. Contact your Land Rover Retailer/Authorized Repairer as soon as possible. ...
