Mercedes-Benz GL-Class: NECK-PRO head restraints
Resetting the NECK-PRO head restraints
requires a lot of strength. If you have
difficulty resetting the NECK-PRO head
restraints, have this work carried out at a qualified specialist workshop, e.g.
an
authorized Mercedes-Benz Center.

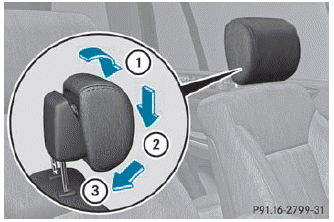

► Tilt the top of the NECK-PRO head
restraint
cushion forwards in the direction of
arrow 1.
► Push the NECK-PRO head restraint cushion
down in the direction of arrow 2 as far as
it will go.
► Firmly push the NECK-PRO head restraint
cushion back in the direction of arrow 3 until the cushion engages.
► Repeat this procedure for the second
NECK-PRO head restraint.
Important safety notes
WARNING
For reasons of safety, have the NECK-PRO
head restraints/NECK-PRO luxury head
restraints checked at an authorized
Mercedes-Benz Center after a rear-end
collision.
WARNING&nbs ...
NECK-PRO luxury head restraints
If you have difficulty resetting the NECKPRO
luxury head restraints, have this work
carried out at a qualified specialist
workshop, e.g. an authorized Mercedes-
Benz Center.
► Remove res ...
