Range Rover: Interior lights - Range Rover Owner's ManualRange Rover: Interior lights

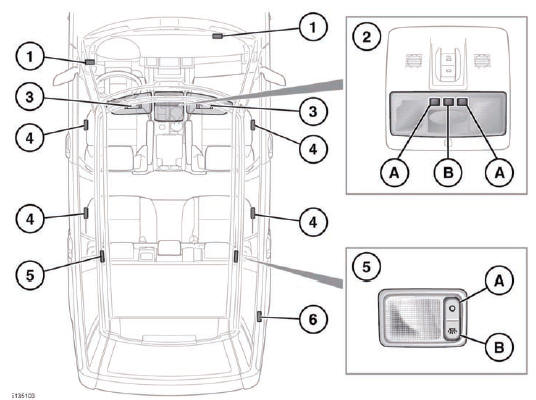

1. Front footwell lamps: Automatically illuminate when the doors are opened.

1. Front footwell lamps: Automatically illuminate when the doors are opened.

2. Map reading/interior lamps:

  • • Map light controls (on/off).
  • • Main interior lamp control (on/off/Auto).

To activate or deactivate Auto mode, press and hold for longer than 3 seconds. In Auto mode the lamps will illuminate when a door is opened.

3. Vanity mirror lamps: Illuminate automatically.

4. Puddle lamps: Automatically illuminate when the doors are opened.

5. Rear courtesy lamps:

  • • Press to turn off.
  • • Press to turn on.

6. Loadspace lamp: Automatically illuminates when the tailgate is opened.
