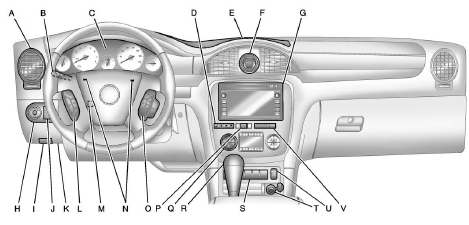

Buick Enclave: Instrument Panel
A. Air Vents .
B. Turn and Lane-Change Lever.
See Turn and Lane-Change Signals .
Windshield Wiper/Washer .
C. Instrument Cluster .
D. Driver Information Center (DIC) Buttons. See Driver Information Center (DIC) .
E. Instrument Panel Storage .
USB Port (Inside IP Storage).
Auxiliary Devices F. Clock .
G. Infotainment .
Navigation/Radio System (If Equipped). See the separate navigation manual.
H. Exterior Lamp Controls .
I. Hood Release. See Hood .
J. Instrument Panel Illumination Control .
K. Data Link Connector (DLC) (Out of View). See Malfunction Indicator Lamp .
L. Cruise Control .
M. Steering Wheel Adjustment .
N. Horn .
O. Steering Wheel Controls .
P. Hazard Warning Flashers .
Q. Dual Automatic Climate Control System .
R. Console Shift Lever.
See “Console Shift Lever” under Shifting Into Park .
S. Rear Window Wiper/Washer .
Traction Control System (TCS) Disable Button.
See StabiliTrak® System .
Tow/Haul Button (If Equipped).
See Tow/Haul Mode .
Power Liftgate Button (If Equipped). See Liftgate .
T. Power Outlets .
U. Heated and Ventilated Front Seats (If Equipped).
V. Passenger Air Bag Status Indicator. See Passenger Sensing System .
In Brief
...
Initial Drive Information
This section provides a brief overview about some of the important features that
may or may not be on your specific vehicle.
For more detailed information, refer to each of the features which can b ...
