Cadillac Escalade: If the Off Indicator is Lit for an Adult-Size Occupant - Passenger Sensing System - Airbag System - Seats and Restraints - Cadillac Escalade Owner's ManualCadillac Escalade: If the Off Indicator is Lit for an Adult-Size Occupant

If a person of adult size is sitting in the right front passenger seat, but the

If a person of adult size is sitting in the right front passenger seat, but the off indicator is lit, it could be because that person is not sitting properly in the seat. If this happens, use the following steps to allow the system to detect that person and enable the right front passenger frontal airbag:

1. Turn the vehicle off.

2. Remove any additional material from the seat, such as blankets, cushions, seat covers, seat heaters, or seat massagers.

3. Place the seatback in the fully upright position.

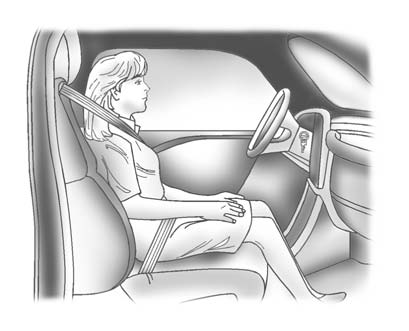

4. Have the person sit upright in the seat, centered on the seat cushion, with legs comfortably extended.

5. Restart the vehicle and have the person remain in this position for two to three minutes after the on indicator is lit.

    If the On Indicator is Lit for a Child Restraint
    If a child restraint has been installed and the on indicator is lit: 1. Turn the vehicle off. 2. Remove the child restraint from the vehicle. 3. Remove any additional items from the seat such as bl ...

    Additional Factors Affecting System Operation
    Safety belts help keep the passenger in position on the seat during vehicle maneuvers and braking, which helps the passenger sensing system maintain the passenger airbag status. See “Safety Beltsâ ...
