Range Rover: Headlamp removal
WARNING
Do not attempt to change any bulb with the lighting switch on. If the lighting has just been switched off, give the bulbs time to cool down. Handling them in a hot condition may cause personal injury.
NOTICE
Do not place the removed lamp unit face down on hard or abrasive surfaces. Doing so may scratch the surface of the lens.

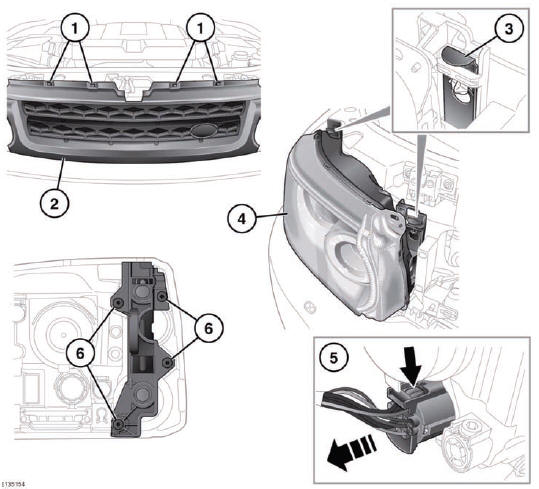

1. Press down on the four upper clips, and gently pulling the grill forwards.
2. Lift the grille clear of the vehicle and place where it will not be damaged.
3. Carefully lever up the locking tabs securing the rear of the headlamp. Hold the headlamp in position while doing so.
4. Holding the front of the lamp, lift forwards and clear of the body.
Note: The locking tabs (3) can be levered too far up, preventing the headlamp being released. If this happens ease the tabs down until the headlamp can be moved forward.
5. Disconnect the electrical connector from the back of the unit and remove the unit from the vehicle.
Note: Place face down on a flat surface covered in a soft material to prevent damage to the units lenses
6. To access the direction indicator, static bending lamp and side lamp, the headlamp unit locking slide assembly must be completely removed from the unit.
To remove the slide assembly, remove the four screws (arrowed). When refitting the slide, do not overtighten the screws.
Note: Refitting the headlamp unit is the reverse of removal.
