Cadillac Escalade: Front Wiper Blade Replacement - Wiper Blade Replacement - Vehicle Checks - Vehicle Care - Cadillac Escalade Owner's ManualCadillac Escalade: Front Wiper Blade Replacement

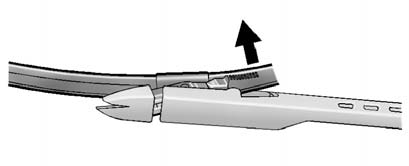

1. Pull the windshield wiper arm connector away from the windshield.

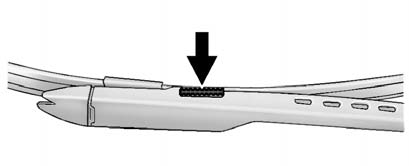

2. Squeeze the grooved areas on each side of the blade, and turn the blade assembly

2. Squeeze the grooved areas on each side of the blade, and turn the blade assembly away from the arm connector.

3. Install the new blade onto the arm connector and make sure the grooved areas

3. Install the new blade onto the arm connector and make sure the grooved areas are fully set in the locked position.

For the proper type and size, see Maintenance Replacement Parts  .

    Wiper Blade Replacement
    Windshield wiper blades should be inspected for wear or cracking. See Maintenance Schedule  . Replacement blades come in different types and are removed in different ways. ...

    Rear Wiper Blade Replacement
    1. Lift the wiper blade assembly up and out of the park rest position. 2. Pull the wiper blade assembly away from the backglass. The backglass wiper blade will not lock in a vertical position, so ...
