Mercedes-Benz GL-Class: Folding the cargo compartment floor up - Vehicle tool kit - Where will <img alt= find...? - Breakdown assistance - Mercedes-Benz GL-Class Owner's Manual" border="0" width="100" align=right style="margin: 0px 3px 0 3px">Mercedes-Benz GL-Class: Folding the cargo compartment floor up

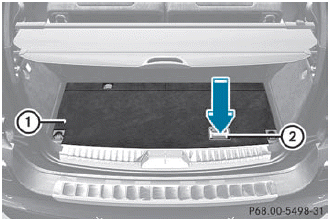

► Press release handle 2 in the direction

► Press release handle 2 in the direction of the arrow.
► Lift cargo compartment floor 1 up by release handle 2.

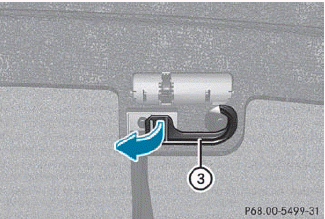

► Fold out hook 3 on the underside of the

► Fold out hook 3 on the underside of the cargo compartment floor.

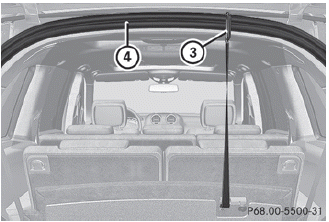

► Attach hook 3 to upper seal 4 in the

► Attach hook 3 to upper seal 4 in the cargo compartment.
