Range Rover: Controls (front touch screen)
WARNING
Do not adjust the touch screen controls, or allow the system to distract the driver, while the vehicle is moving. Driver distraction can lead to accidents, causing serious injury or death.

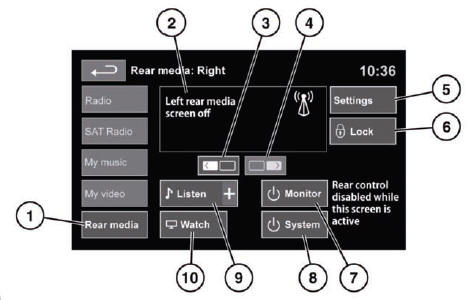

1. Select rear media.
2. Current rear media display.
3. Left screen select.
4. Right screen select.
5. Settings screen.
6. Remote control lock.
7. Turns the selected screen on and off.
8. Turns the selected system on and off.
9. Audio source select.
10. Video source select.
Rear media control from the touch screen
When the main rear media control screen is displayed on the touch screen, the
rear media remote control will be locked out. No part of the rear media system will
operate until it is turned on via ...
