Range Rover: Checking the coolant level - Fluid level checks - Range Rover Owner's ManualRange Rover: Checking the coolant level

NOTICE NOTICE

Running the engine without coolant will cause serious engine damage.

The coolant level in the expansion tank should be checked at least weekly (more frequently in high mileage or arduous operating conditions). Always check the level when the system is cold.

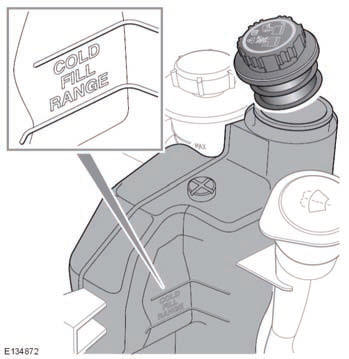

Ensure the coolant level remains between the COLD FILL RANGE indicator marks

Ensure the coolant level remains between the COLD FILL RANGE indicator marks located on the side of the expansion tank. Ignore any coolant visible in the top section of the tank If coolant/steam is expelled from the pressure cap, or the level has dropped suddenly, or by a large amount, arrange for the vehicle to be examined by a qualified technician as soon as possible.

    Topping up the oil
    Your vehicle warranty may be invalidated if damage is caused by using oil that does not meet the required specification. Failure to use an oil that meets the required specification could cause exce ...

    Topping up the coolant
    WARNING Never remove the filler cap when the engine is hot - escaping steam or scalding water could cause serious personal injury. Avoid spilling antifreeze onto a hot engine - a fire may res ...
