Range Rover: Attaching the front towing eye

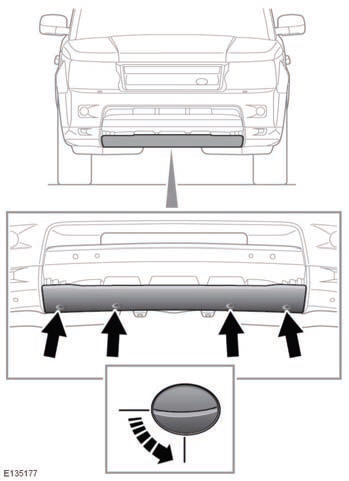

The front towing point is located behind a removable cover in the lower front bumper.
1. Rotate each of the fasteners 90 degrees counter-clockwise with a coin (or similar).
2. To remove the cover, lower the top edge and then pull the cover forward.
3. To refit, offer up the cover and ensure the two lugs at the bottom edge engage with the holes in the body panel.
4. Secure the cover in position by rotating each of the fasteners 90 degrees clockwise.
Off-road recovery
If the towing points are to be used for off-road recovery, it is essential that
off-road driver training covering recovery techniques is undertaken.
Further information on off-road driver training ...
Rear towing point
The rear towing point is located behind a removal panel in the lower rear bumper.
The rear towing point may be used to tow another vehicle if required.
1. Rotate each of the fasteners 90 degrees ...
