Mercedes-Benz GL-Class: Adjusting the steering wheelmanually
This function is only available in vehicles in the USA.

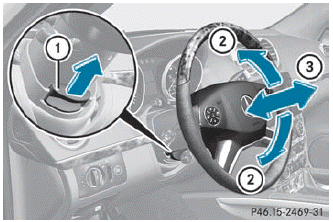

1 Release handle
2 To adjust the steering wheel height
3 To adjust the steering wheel position
(fore-and-aft adjustment)
► Pull release handle : out completely.
The steering column is unlocked.
► Adjust the steering wheel to the desired
position.
► Push release handle : in completely until
it engages fully.
The steering column is locked.
► Check if the steering column is locked.
When doing so, try to push the steering wheel up or down or try to move it in the fore-and-aft direction.
Important safety notes
WARNING
Do not adjust the steering wheel while driving.
Adjusting the steering wheel while driving, or
driving without the steering wheel adjustment
feature locked could cause the driv ...
Adjusting the steering wheelelectrically
1 To adjust the steering wheel position (fore-and-aft adjustment)
2 To adjust the steering wheel height
