Infiniti QX: Replacing - Windshield wiper blades - Maintenance and do-it-yourself - Infiniti QX Owner's ManualInfiniti QX: Replacing

Replace the wiper blades if they are worn.

Replace the wiper blades if they are worn. 1. Pull the wiper arm. 2. Push the release tab A , and then move the wiper blade down the wiper arm 1 while pushing the release tab to remove. 3. Insert the new wiper blade onto the wiper arm until a click sounds. 4. Rotate the wiper blade so the dimple is in the groove.

CAUTION
► After wiper blade replacement, return the wiper arm to its original position; otherwise it may be damaged when the hood is opened.
► Make sure the wiper blades contact the glass; otherwise the arm may be damaged from wind pressure.

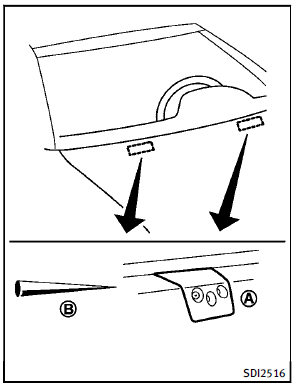

Be careful not to clog the washer nozzle

Be careful not to clog the washer nozzle A . This may cause improper windshield washer operation. If the nozzle is clogged, remove any objects with a needle or small pin B . Be careful not to damage the nozzle.

    Cleaning
    If your windshield is not clear after using the windshield washer or if a wiper blade chatters when running, wax or other material may be on the blade or windshield. Clean the outside of the w ...

    Rear window wiper blades
    Contact an INFINITI retailer if checking or replacement is required. ...
