Cadillac Escalade: Rear Climate Control System (Rear Climate with Rear Seat Audio)
For vehicles with the rear heat and air conditioning controls, they are integrated with the rear seat audio controls located in the center console. The system can be controlled from the front controls as well as the rear controls.

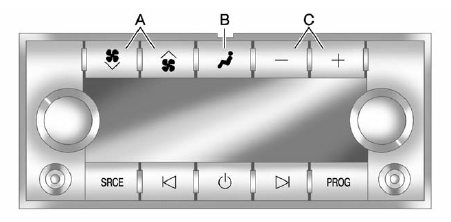

Rear Climate Control with Rear Seat Audio Controls
A. Fan Control
B. Air Delivery Mode Control
C. Temperature Control
REAR: Press the REAR button on the front climate control system to turn the rear climate control system on or off. An indicator comes on when the rear system is on.
The rear climate control system can also be turned off by pressing and holding
the button. To turn the system on from
the rear seats, press any rear climate control button, except the
button.
Mimic Mode: This mode matches the rear climate control to the front climate control airflow settings.
It comes on when REAR is pressed the first time.
Independent Mode: This mode directs rear seating airflow according to the settings of the rear controls.
To turn the system on from the rear, press any rear climate control button, except
the button.
Rear Window Defogger
The rear window defogger uses a warming grid to remove fog from the rear window.
(Rear Window Defogger):
Press to turn the rear window defogger on or off. It automatically turns off
after it has b ...
Automatic Operation, If Equipped
AUTO: Press the air delivery mode button until this setting is selected to control
the inside temperature, air delivery, and fan speed. AUTO appears in the display
when automatic operation is active ...
