Mercedes-Benz GL-Class: Parking lamp/standing lamp
► Switch off the lights.
► Open the hood.

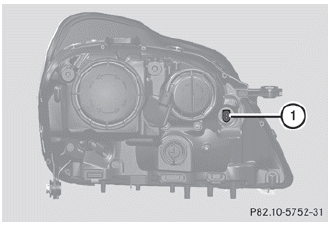

► Turn bulb holder 1 counter-clockwise and
pull it out.
► Take the bulb out of bulb holder 1.
► Insert the new bulb into bulb holder 1.
► Insert bulb holder 1 into the lamp and
turn
it clockwise.
High-beam headlamps
► Switch off the lights.
► Open the hood.
► Turn housing cover 1
counter-clockwise
and pull it out.
► Turn bulb holder 2
counter-clockwise and
pull it out.
► ...
Turn signal lamps/side marker lamps
► Switch off the lights.
► Open the hood.
► Turn bulb holder 1 (WY 5 W)/2 (3457A)
counter-clockwise and pull it out.
► Remove the bulb from bulb holder 1/2.
► Inse ...
