Range Rover: Opening the hood

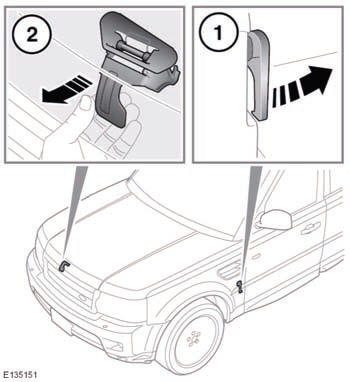

1. Pull the hood release lever, located in the left-hand front footwell.
2. Lift the hood safety catch lever, located below the center point of the hood, then raise the hood.
Used engine oil
Prolonged contact with engine oil may cause serious skin disorders, including
dermatitis and cancer of the skin. Always wash thoroughly after contact.
It is illegal to pollute drains, water cours ...
Closing the hood
WARNING
Do not drive with the hood retained by the safety catch alone.
1. Lower the hood until the safety catch engages. Using both hands, press the
hood down until the catches click.
2. Che ...
