Infiniti QX: Jump starting - In case of emergency - Infiniti QX Owner's ManualInfiniti QX: Jump starting

To start your engine with a booster battery, the instructions and precautions below must be followed.

► If done incorrectly, jump starting can WARNING

► If done incorrectly, jump starting can lead to a battery explosion, resulting in severe injury or death. It could also damage your vehicle.
► Explosive hydrogen gas is always present in the vicinity of the battery. Keep all sparks and flames away from the battery.
► Do not allow battery fluid to come into contact with eyes, skin, clothing or painted surfaces. Battery fluid is a corrosive sulphuric acid solution which can cause severe burns. If the fluid should come into contact with anything, immediately flush the contacted area with water.
► Keep the battery out of the reach of children.
► The booster battery must be rated at 12 volts. Use of an improperly rated battery can damage your vehicle.
► Whenever working on or near a battery, always wear suitable eye protectors (for example, goggles or industrial safety spectacles) and remove rings, metal bands, or any other jewelry. Do not lean over the battery when jump starting.
► Do not attempt to jump start a frozen battery. It could explode and cause serious injury.
► Your vehicle has an automatic engine cooling fan. It could come on at any time. Keep hands and other objects away from it.

If needed, Roadside Assistance is available. Please see your Warranty Information Booklet or Roadside Assistance I.D. Card for the toll-free number to call (U.S.) or Warranty Information Booklet (Canada).

WARNING

Always follow the instructions below. Failure WARNING
Always follow the instructions below. Failure to do so could result in damage to the charging system and cause personal injury.

1. Remove the engine compartment cover, if necessary. See “Engine compartment check locations” in the “8. Maintenance and do-it-yourself” section. 2. If the booster battery is in another vehicle A , position the two vehicles (A and B ) to bring their batteries into close proximity to each other.

Do not allow the two vehicles to touch.

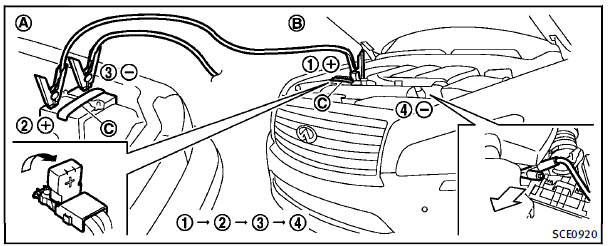

3. Apply parking brake. Move the selector lever to the P (Park) position. Switch off all unnecessary electrical systems (light, heater, air conditioner, etc.). 4. Remove vent caps on the battery (if so equipped). Cover the battery with a firmly wrung out moist cloth C to reduce explosion hazard. 5. Connect jumper cables in the sequence as illustrated (1 -2 -3 -4 ).

CAUTION
► Always connect positive (+) to positive (+) and negative (−) to body ground (as illustrated) — not to the battery.
► Make sure the jumper cables do not touch moving parts in the engine compartment and that clamps do not contact any other metal.

6. Start the engine of the booster vehicle A and let it run for a few minutes. 7. Keep the engine speed of the booster vehicle A at about 2,000 rpm, and start the engine of the vehicle being jump started B .

CAUTION
Do not keep the starter motor engaged for more than 10 seconds. If the engine does not start right away, push the ignition switch to the OFF position and wait 10 seconds before trying again.

8. After starting your engine, carefully disconnect the negative cable and then the positive cable (4 - 3 - 2 -1 ). 9. Replace the vent caps (if so equipped). Be sure to dispose of the cloth used to cover the vent holes as it may be contaminated with corrosive acid. 10.Put the battery cover on.
