Infiniti QX: Interior lights - Instruments and controls - Infiniti QX Owner's ManualInfiniti QX: Interior lights

MAP LIGHTS

Push the button as illustrated to turn the

Push the button as illustrated to turn the light on or off.

REAR PERSONAL LIGHTS

Push the button as illustrated to turn the

Push the button as illustrated to turn the light on or off.

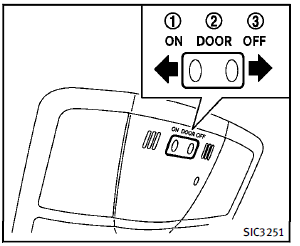

INTERIOR LIGHT CONTROL SWITCH

The interior light control switch has three

The interior light control switch has three positions: ON, DOOR and OFF.

ON position

When the switch is in the ON position 1 the map lights and rear personal lights will illuminate.

DOOR position

When the switch is in the DOOR position 2 , the map lights and rear personal lights will illuminate under the following conditions:

► ignition switch is switched to the LOCK or OFF position — remain on for about 15 seconds.
► doors are unlocked by pushing the UNLOCK button on the Intelligent Key or door handle request switch with the ignition switch in the LOCK or OFF position — remain on for about 15 seconds.
► any door is opened and then closed with the ignition switch in the LOCK or OFF position — remain on for about 15 seconds.
► any door is opened with the ignition switch in the ACC or ON position — remain on while the door is opened. When the door is closed, the lights go off. The lights will also turn off after 15 minutes when the lights remain illuminated after the ignition switch has been pushed to the OFF or LOCK position to prevent the battery from becoming discharged. When the auto interior illumination is set to the OFF position (see “Vehicle information and settings” in the “4. Monitor, climate, audio, phone and voice recognition systems” section), the lights will illuminate under the following condition:
► any door is opened with the ignition switch in any position — remain on while the door is opened. When the door is closed, the lights go off.

OFF position

When the switch is in the OFF position3 , the lights will not illuminate, regardless of the condition.

CAUTION
Do not use for extended periods of time with the engine stopped. This could result in a discharged battery.

    Welcome light
    To activate or deactivate the welcome light function, perform the following procedure. 1. Push the ignition switch to the ON position. 2. Open the driver’s side door. 3. Within 20 second ...

    Vanity mirror lights
    The light on the vanity mirror will turn on when the cover on the vanity mirror is opened. When the cover is closed, the light will turn off. The lights will also turn off after 15 minut ...
