Infiniti QX: Intelligent Key operation - Intelligent Key system - Pre-driving checks and adjustments - Infiniti QX Owner's ManualInfiniti QX: Intelligent Key operation

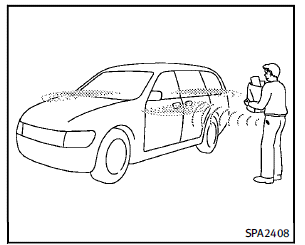

You can lock or unlock the doors without

You can lock or unlock the doors without taking the key out from your pocket or bag.

When you carry the Intelligent Key with

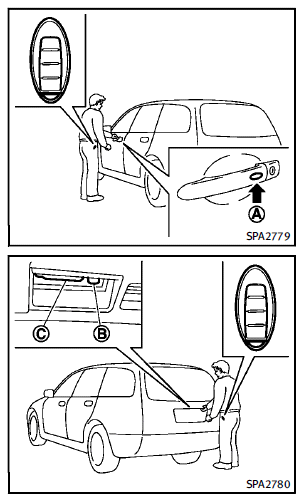

When you carry the Intelligent Key with you, you can lock or unlock all doors by pushing the door handle request switch (driver’s or front passenger’s)A or the lift gate request switchB within the range of operation. When you lock or unlock the doors or the lift gate, the hazard indicator will flash and the horn (or the outside chime) will sound as a confirmation. For details, see “Setting hazard indicator and horn mode” later in this section. Locking doors and fuel-filler door 1. Move the selector lever to the P (Park) position, push the ignition switch to the OFF position and make sure you carry the Intelligent Key with you.1 2. Close all the doors.2 3. Push the door handle request switch (driver’s or front passenger’s)A or the lift gate request switch B while carrying the Intelligent Key with you.3 4. All the doors and fuel-filler door will lock. 5. The hazard indicator flashes twice and the outside chime sounds twice. 1: Doors will lock with the Intelligent Key while the ignition switch is in the ACC or ON position. 2: Doors will not lock with the Intelligent Key while any door is open. 3: Doors will not lock by pushing the door handle request switch with the Intelligent Key inside the vehicle. However, when an Intelligent Key is inside the vehicle, doors can be locked with another registered Intelligent Key.

CAUTION
► After locking the doors using the request switch, make sure that the doors have been securely locked by operating the door handles.
► When locking the doors using the request switch, make sure to have the Intelligent Key in your possession before operating the request switch to prevent the Intelligent Key from being left in the vehicle.
► The request switch is operational only when the Intelligent Key has been detected by the Intelligent Key system.

Lockout protection:

To prevent the Intelligent Key from being accidentally locked in the vehicle, lockout protection is equipped with the Intelligent Key system. When the driver’s side door is open, the doors are locked, and then the Intelligent Key is put inside the vehicle and all the doors are closed; the lock will automatically unlock and the door buzzer sounds.

NOTE:

The doors may not lock when the Intelligent Key is in the same hand that is operating the request switch to lock the door. Put the intelligent key in a purse, pocket or your other hand.

CAUTION
The lockout protection may not function under the following conditions:
► When the Intelligent Key is placed on top of the instrument panel.
► When the Intelligent Key is placed inside the glove box or a storage bin.
► When the Intelligent Key is placed inside the door pockets.
► When the Intelligent Key is placed inside or near metallic materials.

Unlocking doors and fuel-filler door

1. Push the door handle request switch (driver’s or front passenger’s)A or the lift gate request switch B once while carrying the Intelligent Key with you. When you approach the vehicle with the Intelligent Key, the puddle light and the passenger cabin illumination will illuminate and stay on for a short period of time. (See “Welcome light” in the “2. Instruments and controls” section.). 2. The hazard indicator flashes once and outside chime sounds once. The corresponding door will unlock. The fuel-filler door will also unlock when the driver’s door handle request switch is pushed. 3. Push the door handle request switch again within 60 seconds. 4. The hazard indicator flashes once and outside chime sounds once again. All the doors will unlock. The lift gate can be unlocked and opened by pushing the lift gate opener switch. See “Lift gate” later in this section. All doors will be locked automatically unless one of the following operations is performed within 1 minute after pushing the request switch while the doors are locked. If during this 1-minute time period, the request switch is pushed, all doors will be locked automatically after another 1 minute.

► Opening any door
► Pushing the ignition switch Power lift gate open

1. Carry the Intelligent Key. 2. Push the power lift gate opener switch C . 3. The lift gate will unlock and automatically open. 4. The hazard indicator flashes 4 times and the outside chime sounds.

    Door locks/unlocks precaution
    ► Do not push the door handle request switch with the Intelligent Key held in your hand as illustrated. The close distance to the door handle will cause the Intelligent Key system to h ...

    Battery saver system
    When all the following conditions are met for 60 minutes, the battery saver system will cut off the power supply to prevent battery discharge. ► The ignition switch is in the ACC positi ...
