Infiniti QX: Intelligent Key battery replacement - Maintenance and do-it-yourself - Infiniti QX Owner's ManualInfiniti QX: Intelligent Key battery replacement

CAUTION
Be careful not to allow children to swallow the battery and removed parts.

Replace the battery as follows:

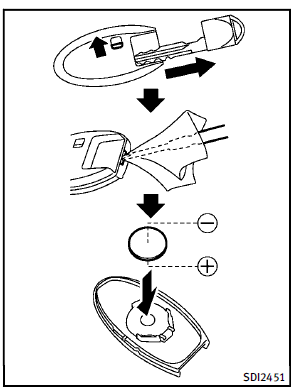

Replace the battery as follows: 1. Release the lock knob at the back of the Intelligent Key and remove the mechanical key. 2. Insert a small screwdriver into the slit of the corner and twist it to separate the upper part from the lower part. Use a cloth to protect the casing. 3. Replace the battery with a new one. Recommended battery: CR2025 or equivalent.
► Do not touch the internal circuit and electric terminals as it could cause a malfunction.
► Hold the battery by the edges. Holding the battery across the contact points will seriously deplete the storage capacity.
► Make sure that the + side faces the bottom of the case.

4. Align the tips of the upper and lower

4. Align the tips of the upper and lower parts1 , and then push them together until it is securely closed 2 . 5. Push the buttons two or three times to check its operation. See an INFINITI retailer if you need any assistance for replacement.

FCC Notice:

For USA:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. For Canada: This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
