Infiniti QX: Headrest - Seats - Safety — seats, seat belts and supplemental restraint system - Infiniti QX Owner's ManualInfiniti QX: Headrest

The adjustable headrests supplement the WARNING
The adjustable headrests supplement the other vehicle safety systems. They may provide additional protection against injury in certain rear end collisions. Adjust the headrests properly, as specified in this section. Check the adjustment after someone else uses the seat. Do not attach anything to the adjustable headrest stalks or remove the adjustable headrests. Do not use the seat if the adjustable headrests have been removed. If the headrest was removed, reinstall and properly adjust the headrest before an occupant uses the seating position. Failure to follow these instructions can reduce the effectiveness of the adjustable headrests. This may increase the risk of serious injury or death in a collision.

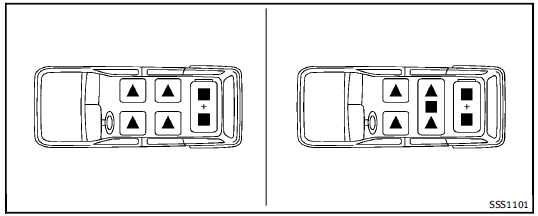

The illustration shows the seating positions

The illustration shows the seating positions equipped with adjustable headrests. Indicates the seating position is equipped with an adjustable or removable headrest. + Indicates the seating position is not equipped with a head restraint or adjustable headrest.

Components

1. Adjustable headrest (if so equipped)

1. Adjustable headrest (if so equipped)
2. Adjustment notch
3. Lock knob
4. Stalks

To raise the headrest, pull it up to the lock

To raise the headrest, pull it up to the lock position.

To lower, push and hold the lock knob and

To lower, push and hold the lock knob and push the headrest down.

Removal

Use the following procedure to remove the

Use the following procedure to remove the headrests. 1. Pull the headrest up to the highest position (adjustable headrest only). 2. Push and hold the lock knob. 3. Remove the headrest from the seat. 4. Store the headrest properly in a secure place so it is not loose in the vehicle. 5. Install and properly adjust the headrest (adjustable headrest only) before an occupant uses the seating position.

Install

1. Align the headrest stalks with the holes

1. Align the headrest stalks with the holes in the seat. Make sure that the headrest is facing the correct direction. The stalk with the adjustment notch must be installed in the hole with the lock knob 1 . 2. Push and hold the lock knob and push the headrest down. 3. Properly adjust the headrest before an occupant uses the seating position (adjustable headrest only).

    Head restraints
    WARNING Head restraints supplement the other vehicle safety systems. They may provide additional protection against injury in certain rear end collisions. Adjust the head restraints properl ...

    Headrest (2nd row center seat) (if so equipped)
    Removal and attachment To remove the headrest, push and hold the lock knob 1 and pull the headrest up. If the headrest is removed, store it in a secure place. Reinstall the headrest when th ...
