Infiniti QX: Dot matrix liquid crystal display - Instruments and controls - Infiniti QX Owner's ManualInfiniti QX: Dot matrix liquid crystal display

The dot matrix liquid crystal display

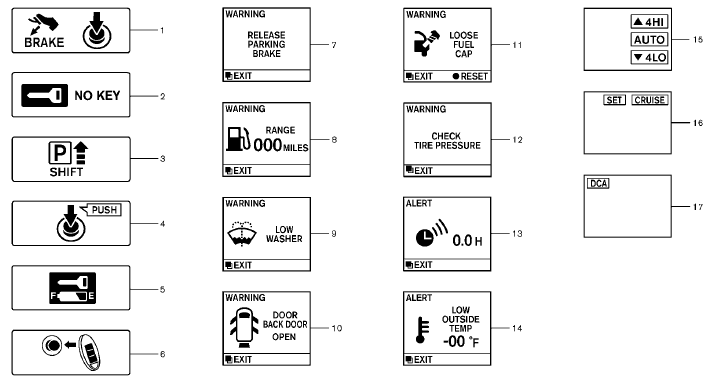

The dot matrix liquid crystal display appears in the vehicle information display 1 located between the speedometer and odometer, and shows the indicators for the driving systems, Intelligent Key operation and various warnings and information. For detailed information about each system, see the following sections:

► Automatic Transmission (AT) — “Warning/indicator lights and audible reminders” earlier in this section. — “Driving the vehicle” in the “5. Starting and driving” section.
► Four-Wheel Drive (4WD) system — “INFINITI all-mode 4WD®” in the “5. Starting and driving” section.
► Cruise control system — “Cruise control” in the “5. Starting and driving” section.
► Intelligent Cruise Control (ICC) system — “Intelligent Cruise Control (ICC) system” in the “5. Starting and driving” section.
► Distance Control Assist (DCA) system — “Distance Control Assist (DCA) system” in the “5. Starting and driving” section.
► Intelligent Key system — “Intelligent Key system” in the “3. Pre-driving checks and adjustments” section. — “Push-button ignition switch” in the “5. Starting and driving” section.

Operational indicators

Audible reminders
Key reminder chime A chime will sound if the driver side door is opened while the ignition switch is pushed to the ACC position. Make sure the ignition switch is pushed to the OFF position, and ...

Operational indicators
1. Engine start operation indicator This indicator appears when the selector lever is in the P (Park) position. This indicator means that the engine will start by pushing the ignition switch w ...
