Mercedes-Benz GL-Class: Deactivating/activating PARKTRONIC

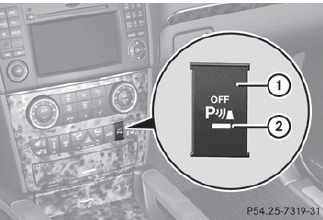

Vehicles without the Enhanced Off-Road Pro Engineering Package
1 To deactivate/activate PARKTRONIC
2 Indicator lamp

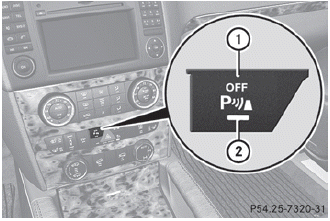

Vehicles with the Enhanced Off-Road Pro Engineering Package
1 To deactivate/activate PARKTRONIC
2 Indicator lamp
If indicator lamp 2 lights up, PARKTRONIC is deactivated.
PARKTRONIC is automatically activated
when you turn the SmartKey to position 2
in the ignition lock.
Warning displays
The warning displays show the distance
between the sensors and the obstacle. The
warning display for the front area is located
on the dashboard above the center air vents.
The warning display fo ...
Trailer towing
PARKTRONIC is deactivated for the rear area
when you establish an electrical connection
between your vehicle and a trailer.
Fold in the ball coupling if the trailer tow
hitch is not required. ...
