Infiniti QX: Cockpit - Illustrated table of contents - Infiniti QX Owner's ManualInfiniti QX: Cockpit

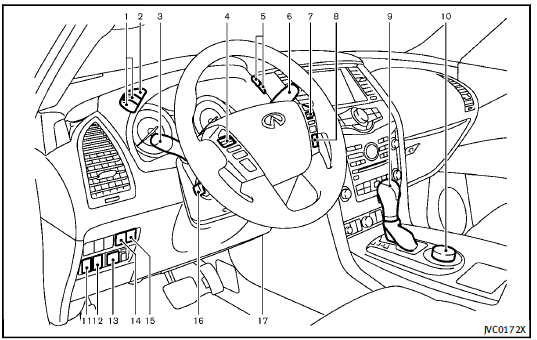

1. Instrument brightness control switch

1. Instrument brightness control switch (P.2-42)
2. TRIP/RESET switch for twin trip odometer (P.2-7)
3. Headlight, fog light and turn signal switch
— Headlight (P.2-38)
— Turn signal (P.2-43)
— Fog light (P.2-43)
4. Steering-wheel-mounted controls (left side)
— Audio control steering switch (P.4-79)
— Hands-Free Phone System switch (P.4-94)
5. Trip computer switch (P.2-28)
6. Wiper and washer switch (P.2-33)
7. Steering-wheel-mounted controls (right side)
— Cruise control system (P.5-45)
— Intelligent Cruise Control (ICC) system (P.5-47)
8. Dynamic driver assistance switch
— Lane Departure Prevention (LDP) system (P.5-21)
— Distance Control Assist (DCA) system (P.5-70)
— Blind Spot Intervention system (P.5-31)
9. Selector lever (P.9-29) 10. Four-Wheel Drive (4WD) shift switch (P.5-91)/SNOW mode switch (P.2-49)/TOW MODE switch (P.2-49)/Vehicle
Dynamic Control (VDC) OFF switch (P.5-106)
11. Headlight aiming control (P.2-40)
12. Power lift gate main switch (P.3-18)
13. Outside rearview mirror remote control switch (P.3-28)
14. Warning systems switch
— Lane Departure Warning (LDW) (P.5-21)
— Blind Spot Warning (BSW) (P.5-31)
— Forward Collision Warning (FCW) (P.5-82)
15. Power lift gate switch (P.3-18)
16. Electric tilting/telescopic steering wheel switch (P.3-26)
17. Intelligent Brake Assist (IBA) OFF switch (P.5-86)
