Mercedes-Benz GL-Class: Belt height adjustment
You can adjust the seat belt height on the driver's seat and the front-passenger seat.
Adjust the height so that the upper part of the seat belt is routed across the center of your shoulder.

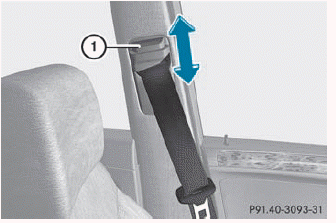

► To raise: slide the belt sash guide upwards.
The belt sash guide engages in various positions.
► To lower: press and hold belt sash guide
release 1.
► Slide the belt sash guide downwards.
► Release belt sash guide release 1 and
make sure that the belt sash guide has
engaged.
Seat belt adjustment
The seat-belt adjustment function adjusts the
driver's and front-passenger seat belt to the
upper body of the occupants.
The belt strap is tightened slightly when:
• you engage the belt tongue ...
Releasing seat belts
► Press release button 4 and
guide belt tongue 2 back towards belt
sash guide 1.
Make sure that the seat belt is fully rolled
up. Otherwise, the seat belt or belt tongue
will be trapped i ...
