Mercedes-Benz GL-Class: "Minispare" emergency spare wheel - Vehicle tool kit - Where will <img alt= find...? - Breakdown assistance - Mercedes-Benz GL-Class Owner's Manual" border="0" width="100" align=right style="margin: 0px 3px 0 3px">Mercedes-Benz GL-Class: "Minispare" emergency spare wheel

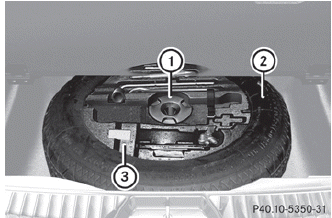

The "Minispare" emergency spare wheel can be found in the stowage well under the cargo compartment floor.

► Lift the cargo compartment floor up.
► Take out the jack.

► Turn emergency spare wheel retainer 1

► Turn emergency spare wheel retainer 1 counter-clockwise and remove it.
► Remove insert 3.
► Remove "Minispare" emergency spare wheel 2.

For further information on changing a wheel and mounting the spare wheel, see.

    Vehicles with a "Minispare" emergencyspare wheel
    ► Lift the trunk floor up. 1 Alignment bolt 2 Towing eye 3 Lug wrench 4 Ratchet wrench 5 Velcro fastener 6 Jack 7 Wheel bolts 8 Folding wheel chock 9 Fuse allocation chart 10 Stowage ...
